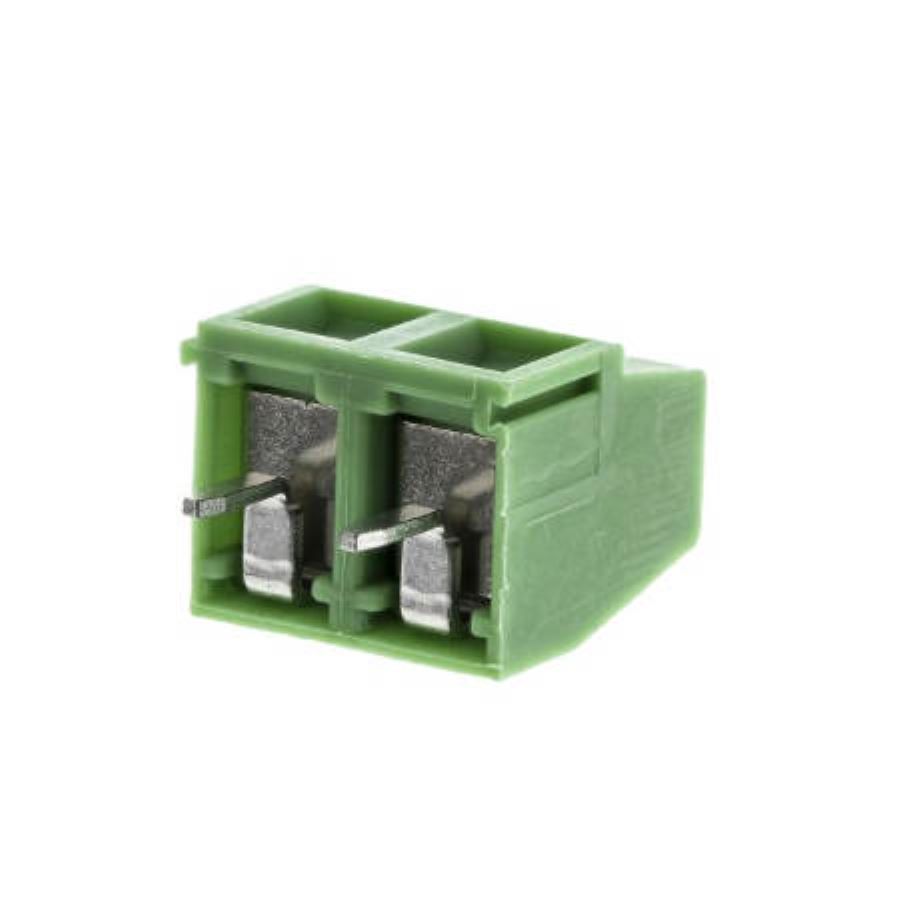

1729018
Manufacturer:
Phoenix Contact
Mfr.Part #:
1729018
Datasheet:
Description:
Terminal Blocks Through Hole 2 5 mm 10 A 300 V 30 AWG to 14 AWG
| Parameter | Value |
|---|---|
| Length | 8.1 mm |
| Width | 13.5 mm |
| Termination | Screw - Rising Cage Clamp |
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Height | 10.15 mm |
| Material | Polyamide |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| Depth | 8.1 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Voltage | 300 V |
| Weight | 1.970008 g |
| Contact Material(Contact Finish) | Tin |
| Pitch | 5 mm |
| Current | 10 A |
| Current Rating | 10 A |
| Max Current Rating | 13.5 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CB, CSA, UL, cULus |
| Number of Circuits | 2 |
| Orientation | Horizontal with Board |
| Max Supply Voltage | 250 V |
| Color | Green |
| Gender | Male |
| Number of Contacts | 2 |
| Number of Poles | 2 |
| Connector Type | Screw |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Insulation Material | Nylon |
| Housing Material | Polyamide |
| Number of Positions Per Level | 2 |
| Number of Levels | 1 |
| Wire Gauge (Max) | 26 AWG |
| Wire Gauge (Min) | 26 AWG |
| Housing Color | Green |
| Stripping Length | 6 mm |
| Connection Method | Screw |
| Wire Gauge Range | 30 AWG to 14 AWG |
Stock: 74
Distributors
pcbx
pcbxUnit Price$0.51139
Ext.Price$0.51139
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.51139 | $0.51139 |
| 10 | $0.40531 | $4.05310 |
| 25 | $0.37762 | $9.44050 |
| 50 | $0.35182 | $17.59100 |
| 100 | $0.32779 | $32.77900 |
| 300 | $0.30540 | $91.62000 |
| 500 | $0.28454 | $142.27000 |
| 1000 | $0.26510 | $265.10000 |
